EPR Buena Vista 1 & 2
Brushy Canyon Formation cores through the middle and margin of a channel fill, approximately 130 km west of Pecos, Texas.
|

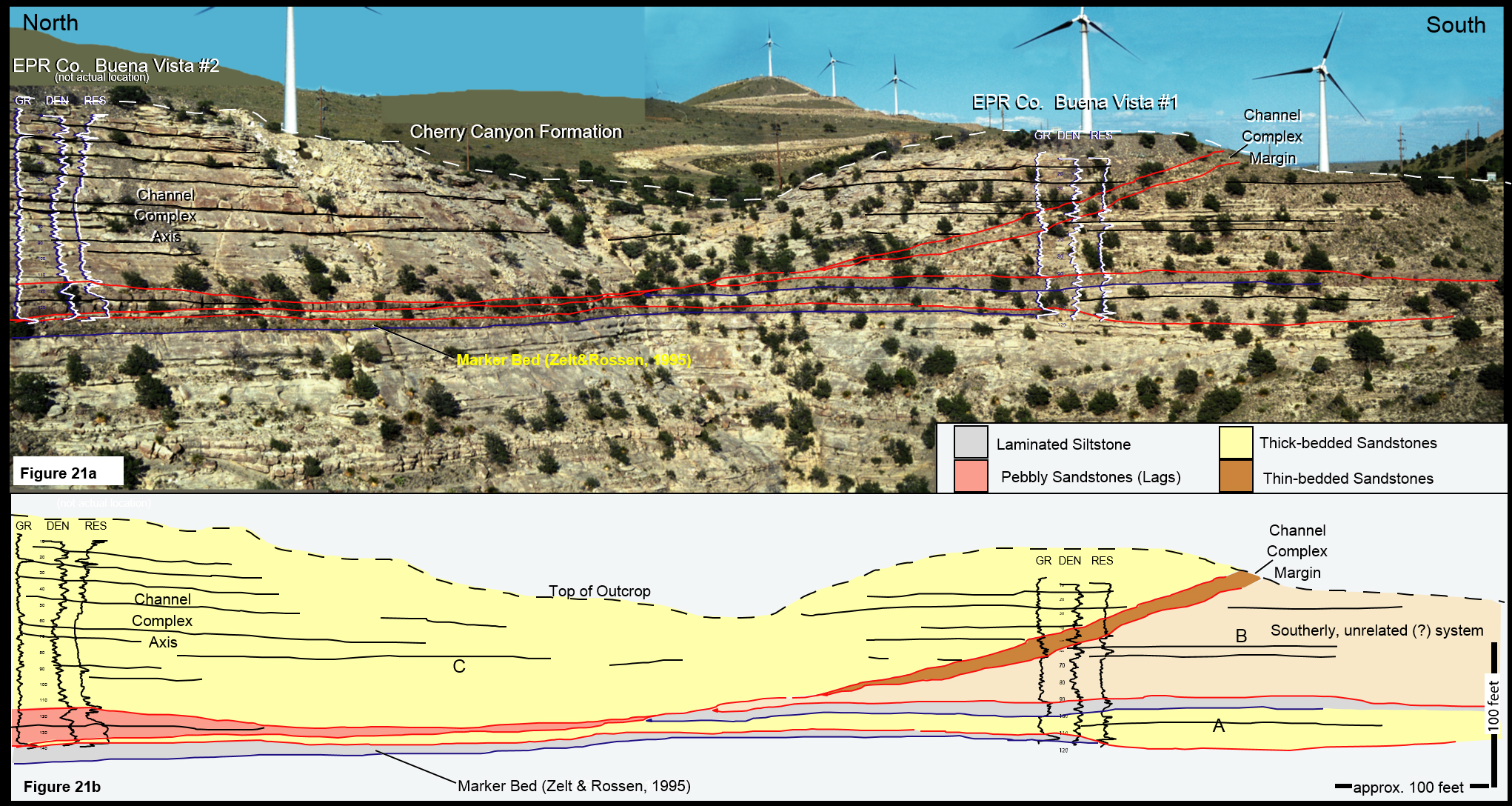

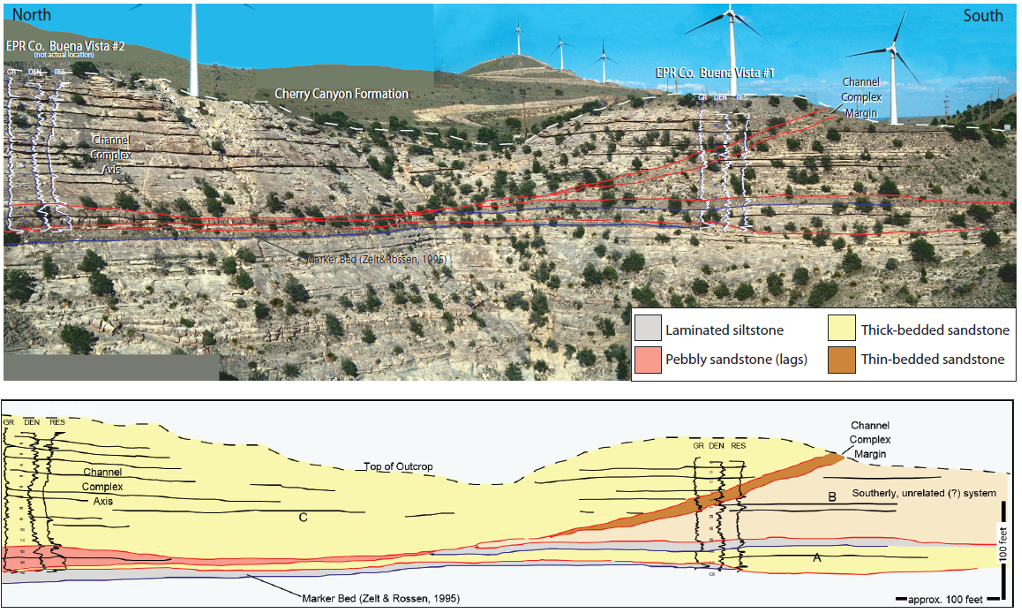

Drilled in 1998 BV 1: 31°44'15.86"N 104°45'57.45"W BV 2: 31°44'20.55"N 104°46'2.70"W Outcrop photopan showing the relationship of the EPR Buena Vista cores 1 and 2 to the channel geometry of the upper Brushy Canyon Formation. and Beaubouef, R.T., C. Rossen, F.B. Zelt, M.D. Sullivan, D.C. Mohrig, G D.C. Jennette. 1999.Field Guide For AAPG Hedberg Field Research Conference - April 15-20, 1999 Deep-Water Sandstones, Brushy Canyon Formation, West Texas . American Association Of Petroleum Geologists Continuing Education Course Note Series #40. |

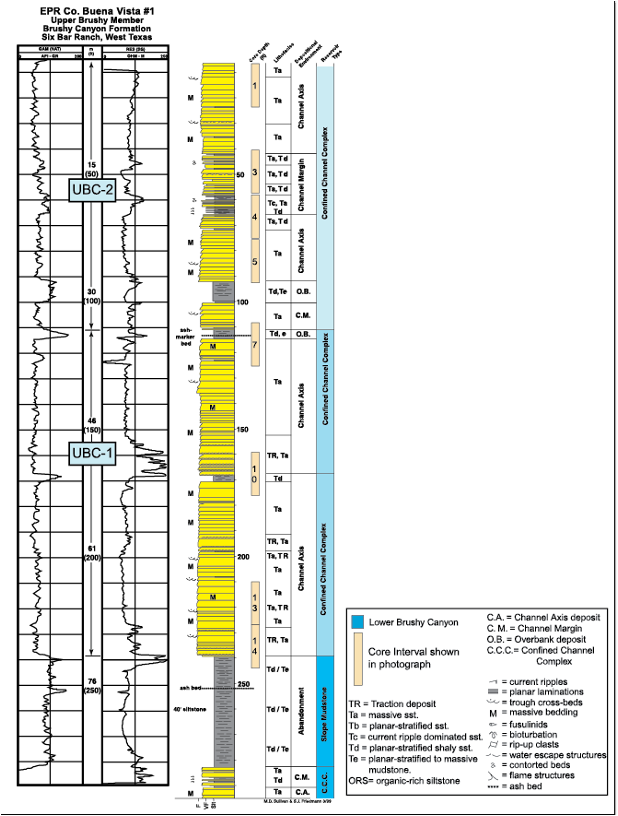

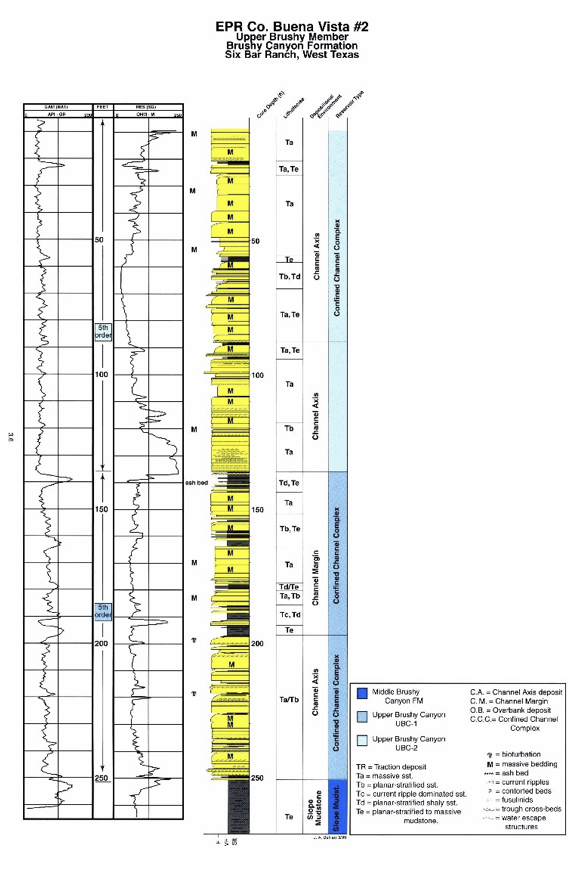

Scans of paper logs
From Rossen, C. and Beaubouef, R.T., 2007. Toe of slope channel complexes at Buena Vista, Upper Brushy Canyon Formation, Texas USA. In Nilsen, H et al. 2007. Atlas of Deepwater Outcrops, AAPG Studies in Geology 56, p. 450-456.
AAPG© 2007, reprinted by permission of the AAPG whose permission is required for further use.
and
Beaubouef, R.T., C. Rossen, F.B. Zelt, M.D. Sullivan, D.C. Mohrig, G D.C. Jennette. 1999.Field Guide For AAPG Hedberg Field Research Conference - April 15-20, 1999 Deep-Water Sandstones, Brushy Canyon Formation, West Texas. American Association Of Petroleum Geologists Continuing Education Course Note Series #40.
AAPG© 1999, reprinted by permission of the AAPG whose permission is required for further use.
From Beaubouef, R.T., C. Rossen, F.B. Zelt, M.D. Sullivan, D.C. Mohrig, G D.C. Jennette. 1999.Field Guide For AAPG Hedberg Field Research Conference - April 15-20, 1999 Deep-Water Sandstones, Brushy Canyon Formation, West Texas . American Association Of Petroleum Geologists Continuing Education Course Note Series #40.
AAPG© 1999, reprinted by permission of the AAPG whose permission is required for further use.
Core sections - Buena Vista 1
Click the link below below to download a jpg of the image. This is the highest resolution available.
|
Section 1: 7-161 ft BuenaVista1_Part1_07-161ft.jpg |
 |
|
Section 2: 161-292 ft BuenaVista1_Part2_161-292ft.jpg |
 |
Sections 7-23ft, 41-92ft, 109-126ft, 161-177ft, and 212-246ft
From Rossen, C. and Beaubouef, R.T., 2007. Toe of slope channel complexes at Buena Vista, Upper Brushy Canyon Formation, Texas USA. In Nilsen, H et al. 2007. Atlas of Deepwater Outcrops, AAPG Studies in Geology 56, p. 450-456.
AAPG©2007. Reprinted by permission of the AAPG whose permission is required for further use.
Core sections - Buena Vista 2
Click the link below below to download a jpg of the image. This is the highest resolution available.
|
Section 1: 4 - 139 ft BuenaVista2_Part1_04-139ft.jpg |
 |
|
Section 2: 139 - 271 ft BuenaVista2_Part2_139-271ft.jpg |
 |
